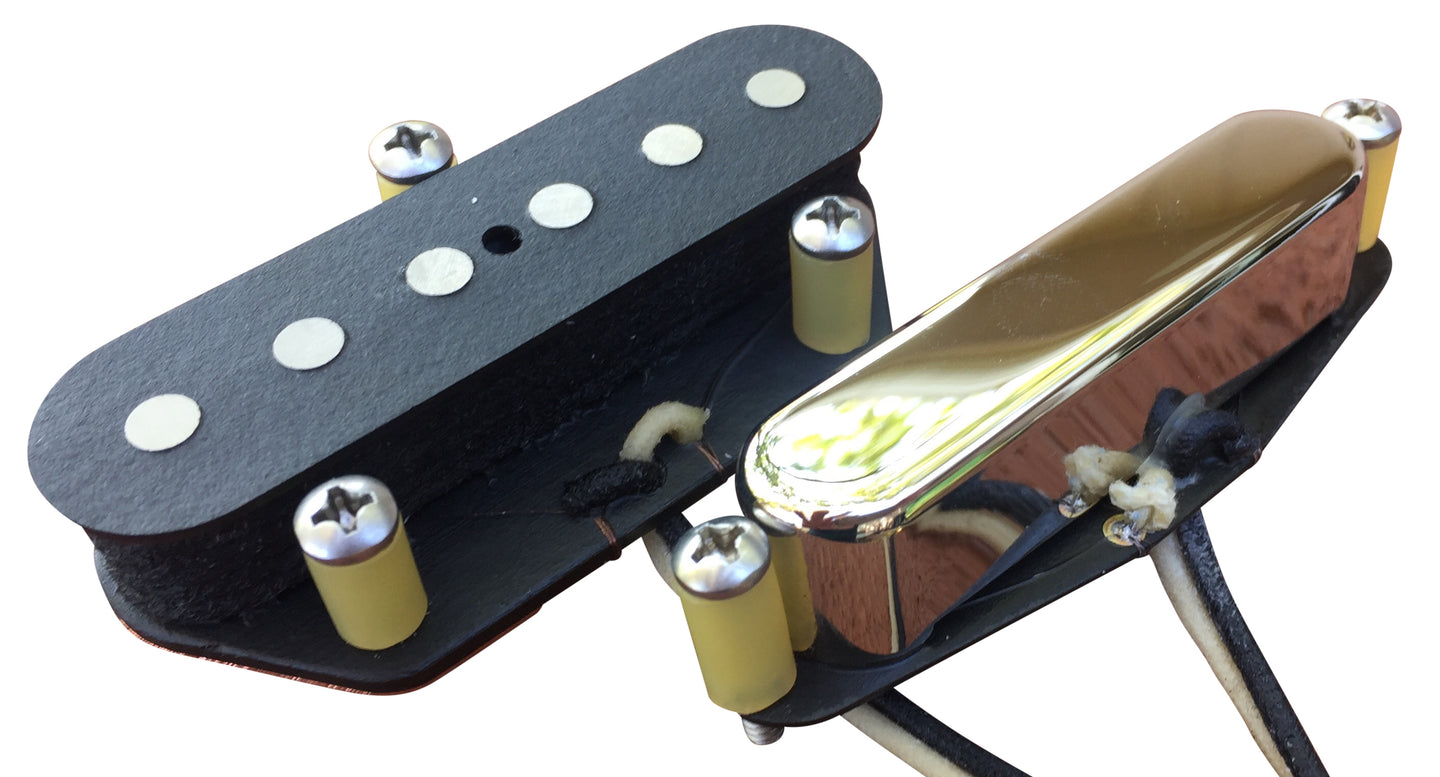

The 5|2 Union T is crafted with a blend of Alnico magnets, using Alnico 5 on the bass side and Alnico 2 on the treble side. This configuration provides a tight low end and softer highs. It features plain enamel wire, fiber bobbins, and cloth lead wires. The neck pickup includes an American-made nickel silver cover for enhanced transparency. It is reverse-wound/reverse-polarity (RWRP) for hum cancellation in the middle position, and the neck is tapped for 6-32 screws. Additionally, wood mounting screws are include ***Raw covers will have light scratches and blemishes. This is due to them not going through the polishing/plating process
USA Made Black vulcanized Flatwork
USA Made 42 plain enamelwire
Cast alnico 2&5 magnets
USA made nickel silver cover
USA made cloth leads
Steel baseplate
Wax Potted Handwound & Handmade in Nebraska
Neck CCW North 7.3k (+/- 5% @ 68 degrees)
Bridge CW South 7.2k (+/- 5% @ 68 degrees)
**Please see current build times at the top of the page.
